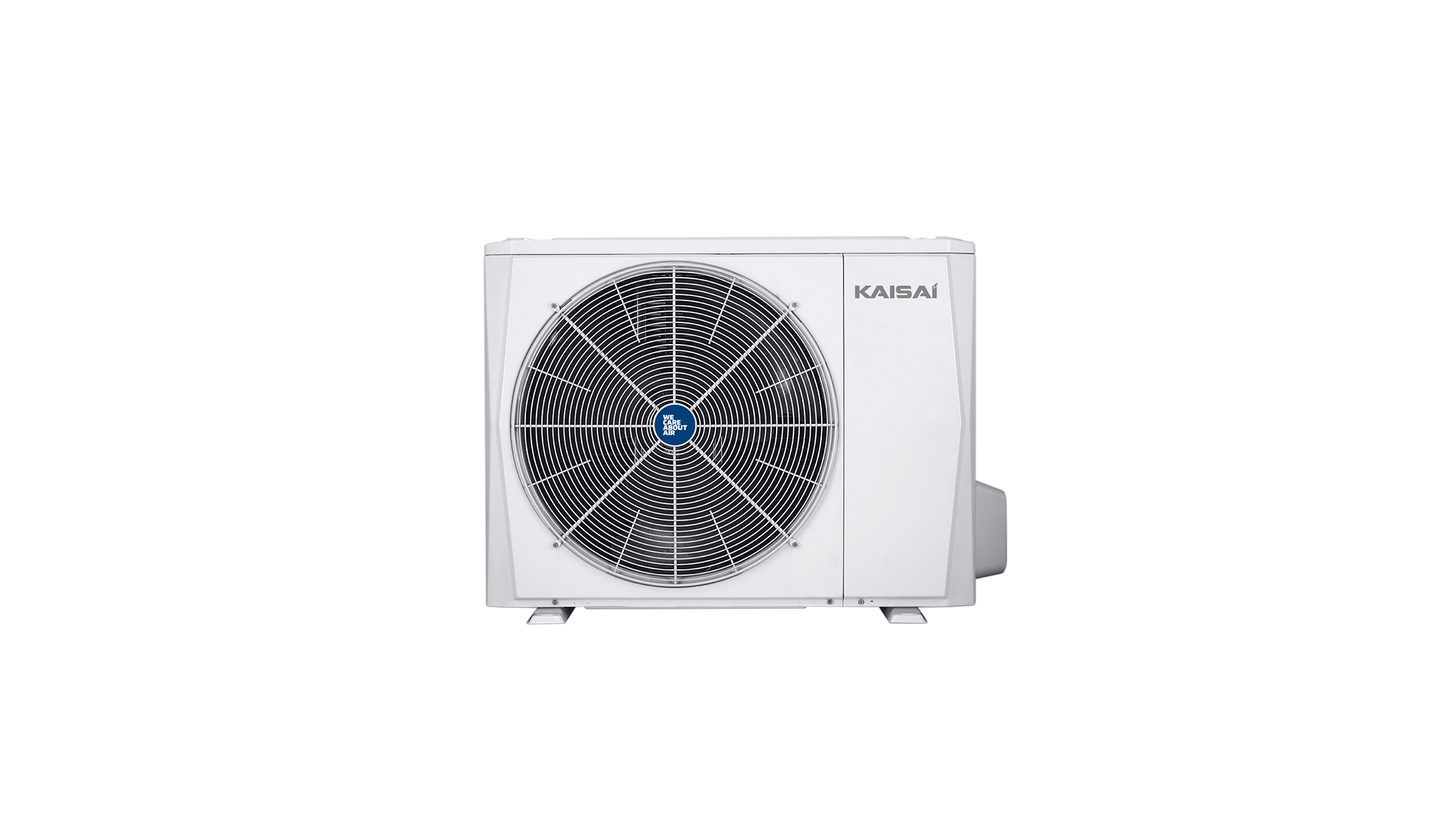

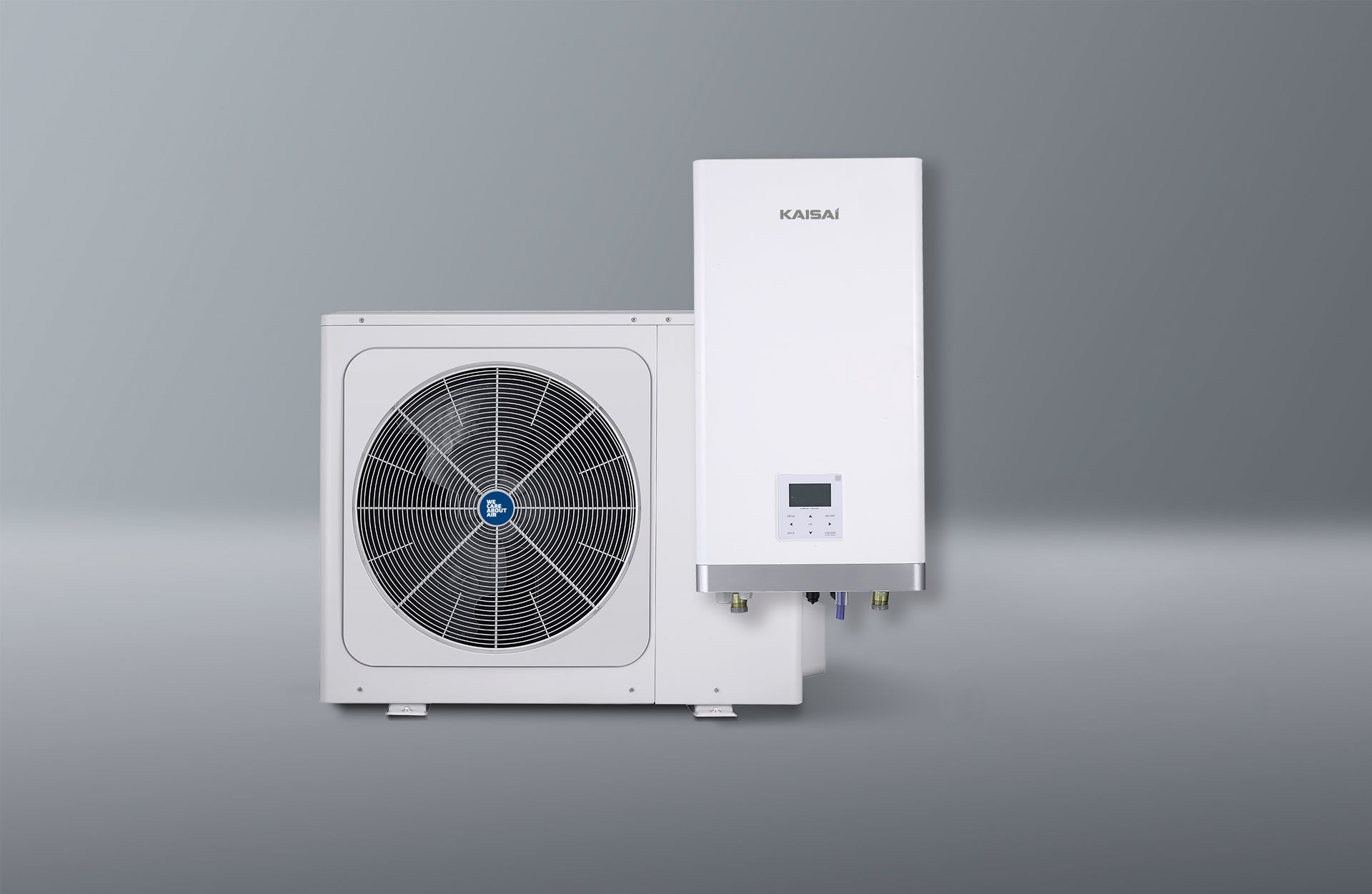

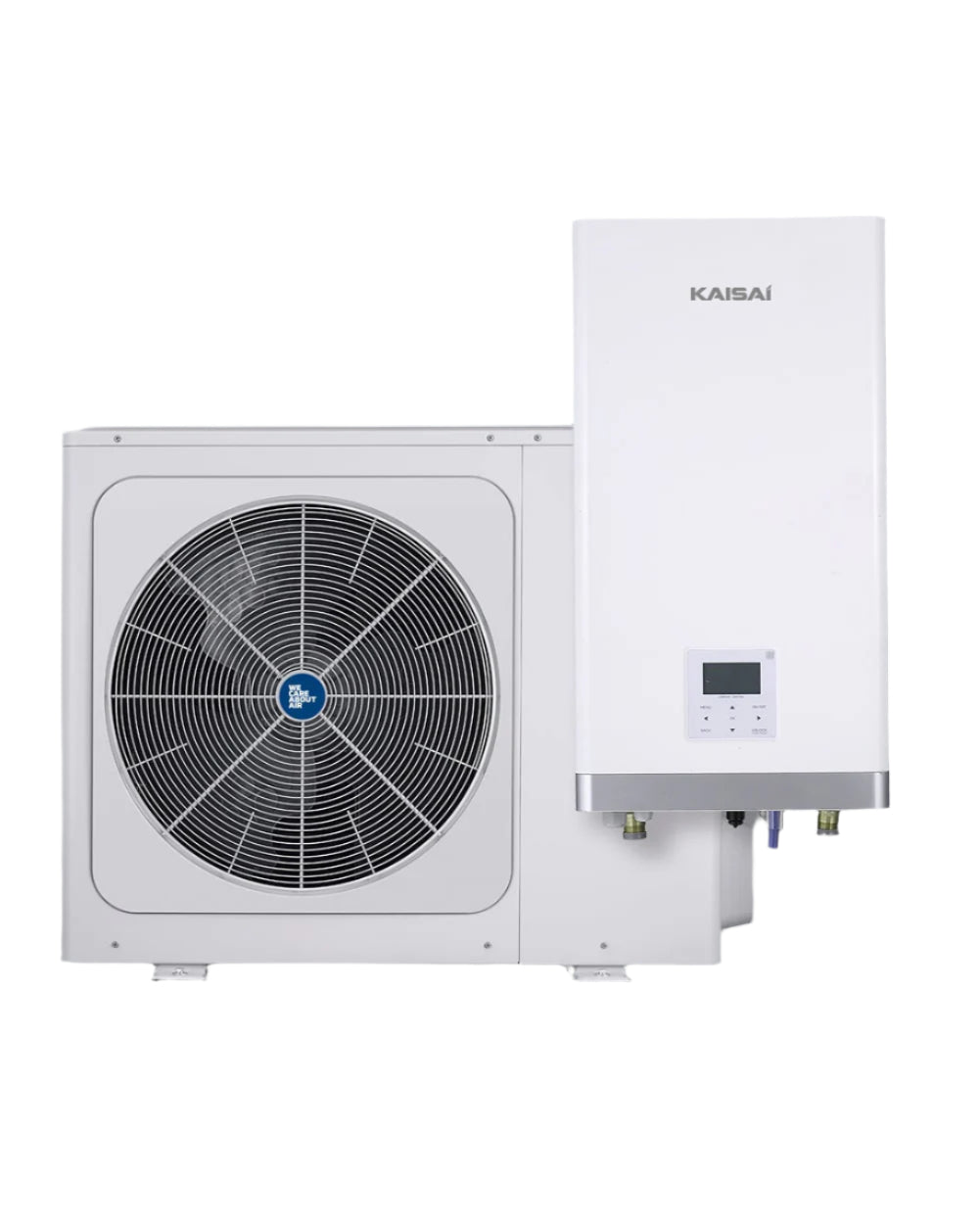

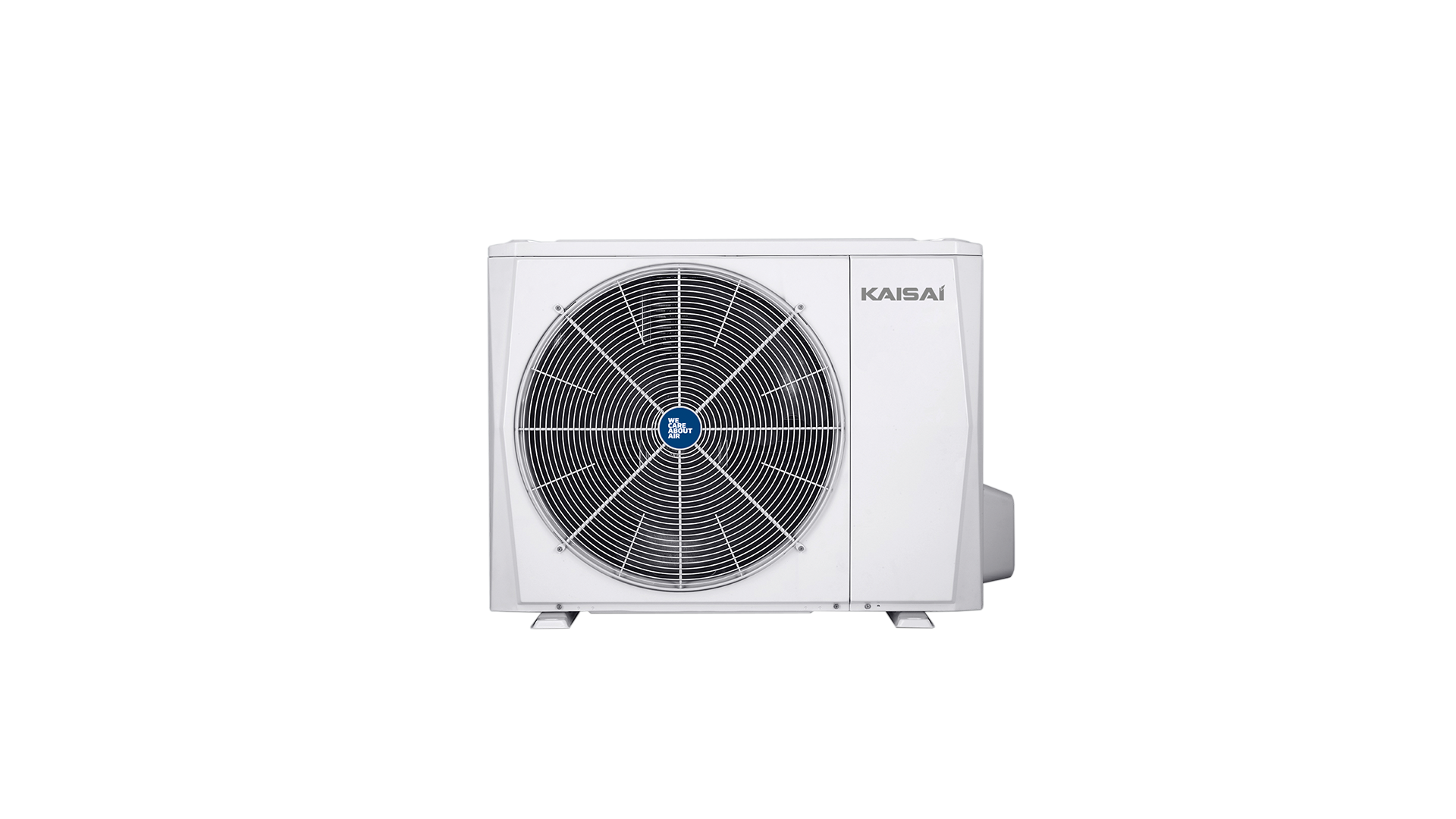

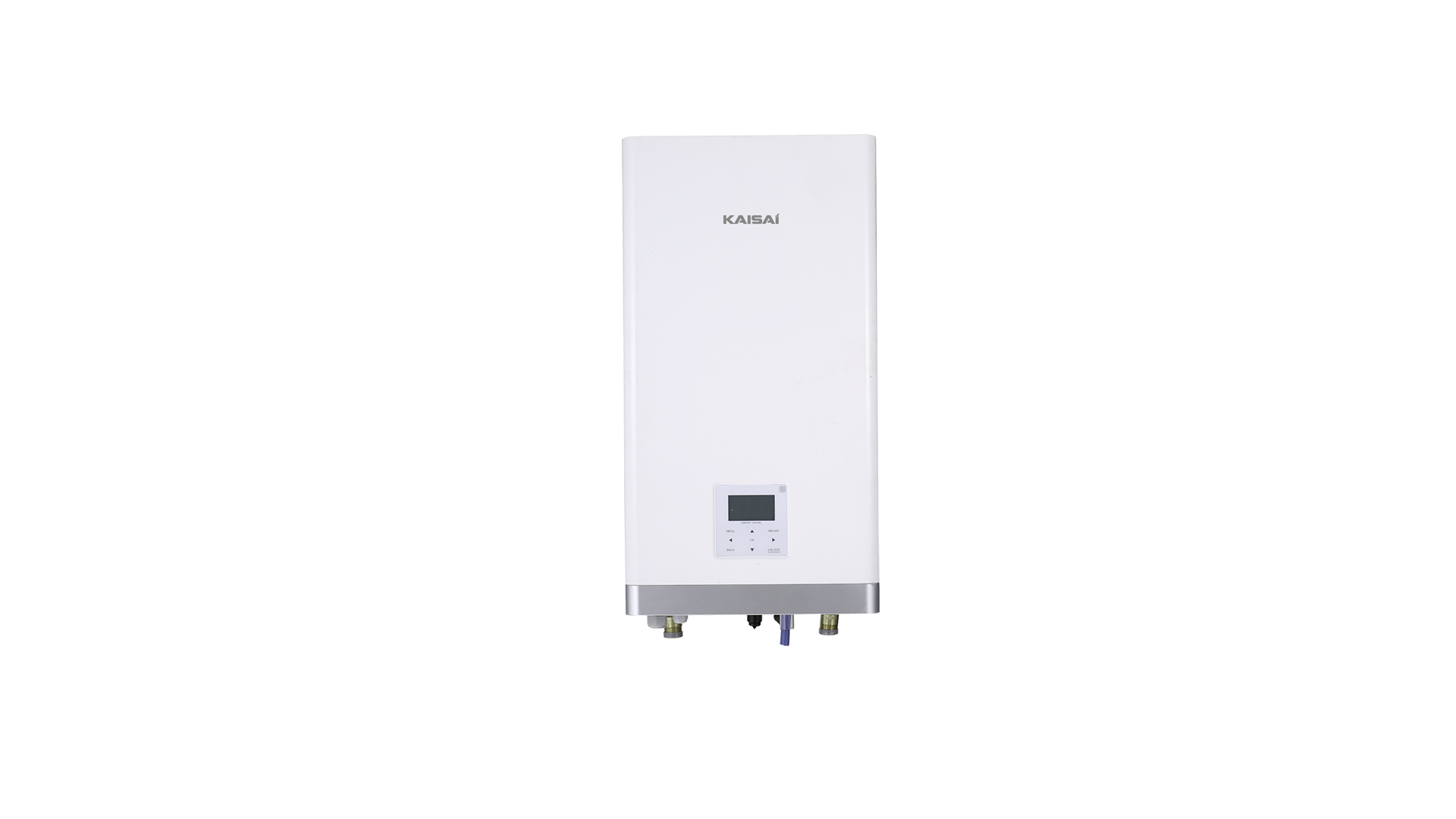

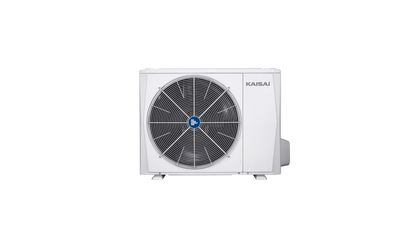

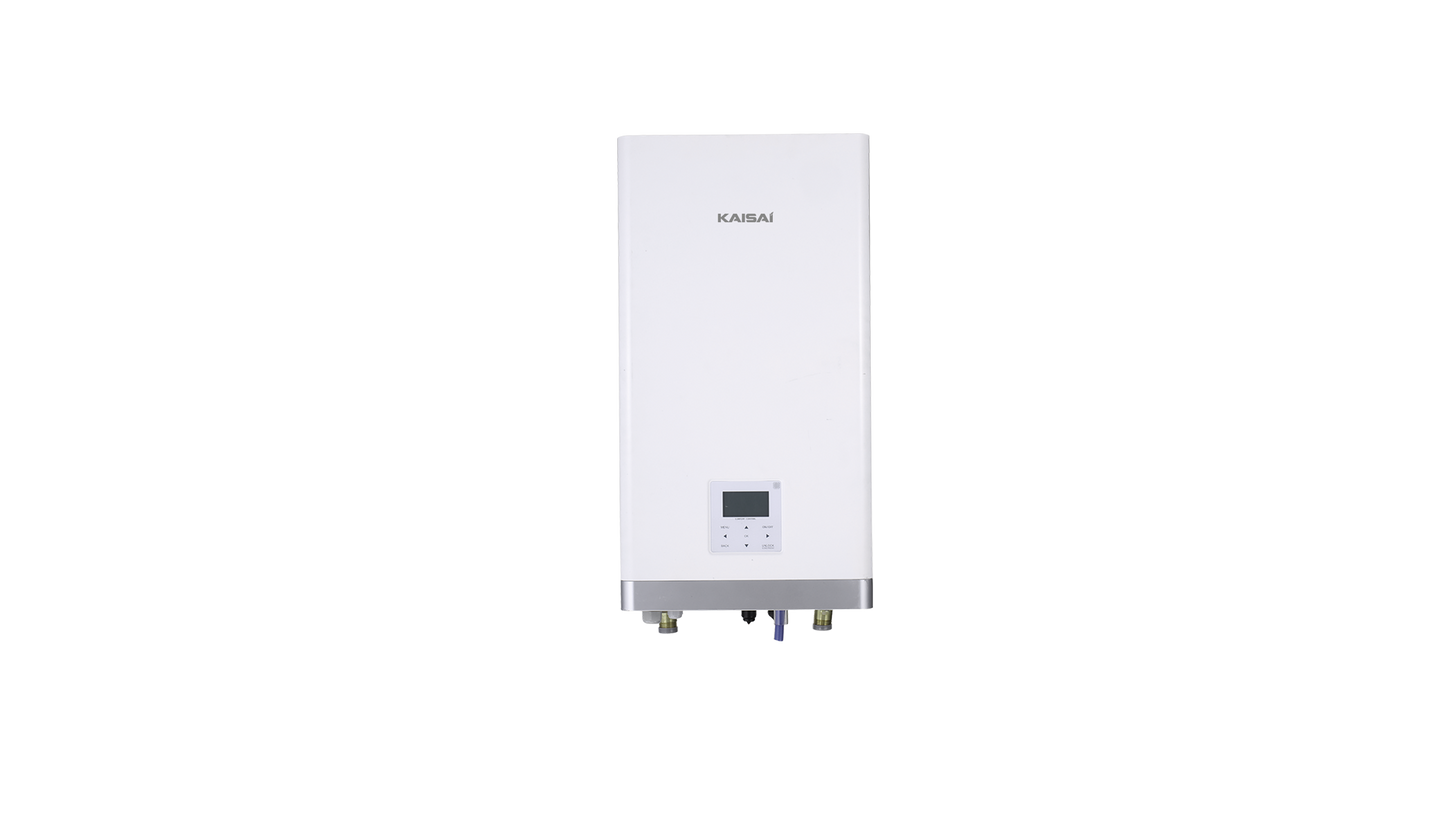

Kasai Split R32 Hydraulic Module & Outdoor Unit

Name: Kasai Split R32 Hydraulic Module & Outdoor Unit
Brand: CGE
SKU: KMK-60RY1 / KHA-06RY1-B
Price: 5250.0 EUR
Availability: InStock

From €5.250,00 EUR

Model KMK-60RY1 / KHA-06RY1-B KMK-100RY3 / KHA-08RY1-B KMK-100RY3 / KHA-10RY1-B KMK-160RY3 / KHA-12RY3-B KMK-160RY3 / KHA-14RY3-B KMK-160RY3 / KHA-16RY3-B

Product variants

€5.250,00 EUR

Tax included.

Want next day delivery? Be quick!

I18n Error: Missing interpolation value "end_date" for "Ends on {{ end_date }}"

Shop safely

From checkout to delivery, every part of your order is protected by robust security systems and verified providers.

Shop safely with us

The new KAISAI Arctic heat pump series is characterised by its ability to operate in a very wide range of outdoor temperatures and also features a much quieter outdoor unit design. In addition to the possibility of connecting up to 16 units via MODBUS protocol, the Arctic series also allows you to connect up to 6 units in a cascade system. The equipment is provided with a USB port for updating software and saving settings.

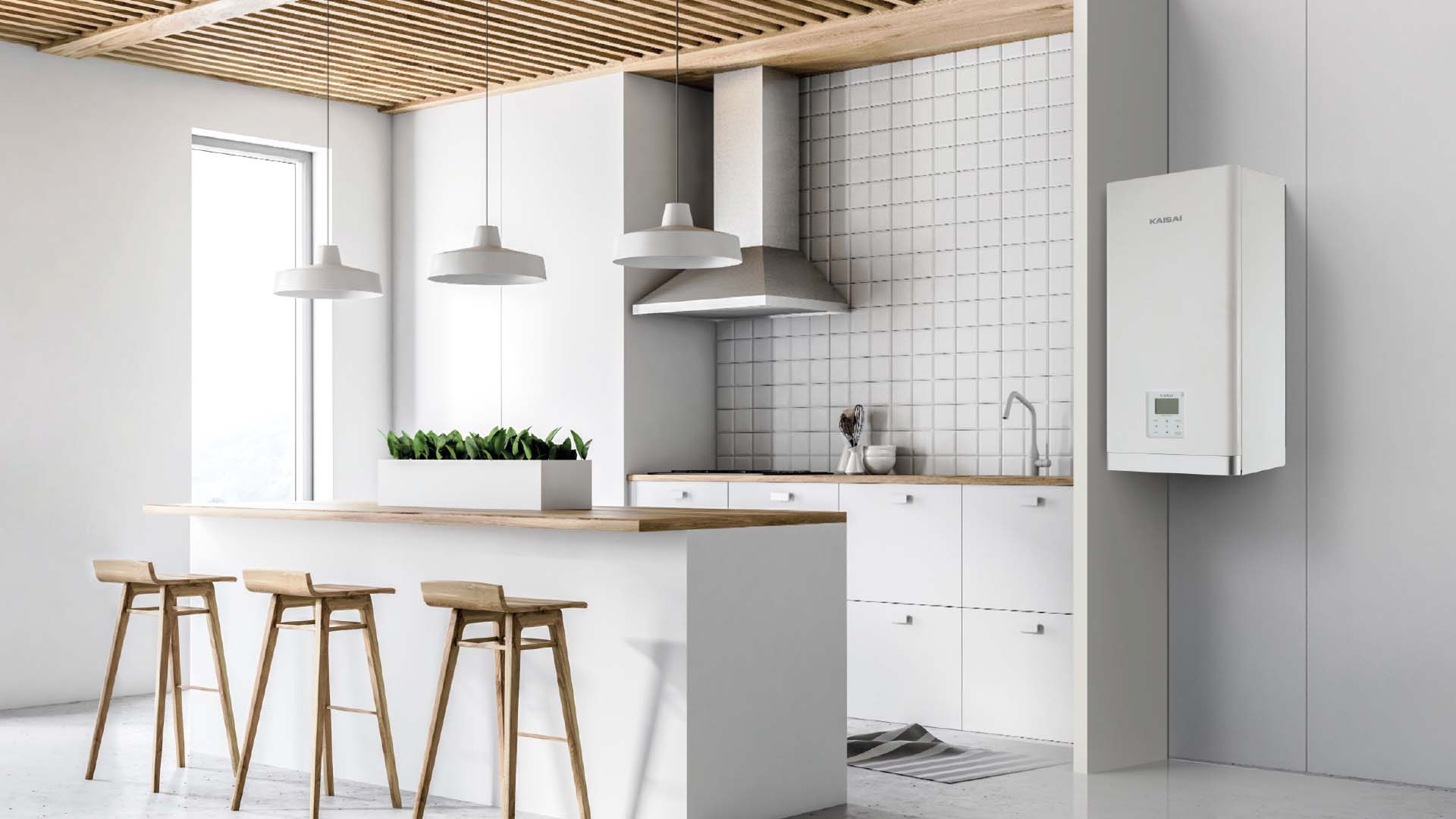

The new iLetComfort application for tablets and phones allows you to remotely control supply and hot water temperatures, switch zones and control electricity consumption. A compact design, an independent internal unit, and flexible installation make the Eco Home – Split Heat Pump (KHA+KMK) the ideal choice for owners of homes, shops, offices and service premises. All the hydraulic components are easily accessible. The refrigerating connection between the outdoor and indoor units is resistant to freezing, even during a prolonged power failure, and an additional charge of refrigerant is only required if the length of the refrigerant lines exceeds 15 m.

Specifications

6 operation modes: Heating / Cooling / DHW / Heating + DHW / Cooling + DHW / AUTO
Wireless WiFi operation
Modbus RTU protocol
Compact design (complete hydraulic module for central heating operation)
Advanced controller in the indoor unit
Additional electric heater
Anti-corrosive fin coating

Technical data

Nominal capacity (heating): 6 / 8 / 10 / 12 / 14 / 16 kW
Heating capacity of heater: 3 / 6 / 9 kW
Refrigerant R32
Energy rate (heating): A+++/A++
COP: up to 5,2
Water temperature – heating mode: 25~65°C
Water temperature – cooling mode: 5~35°C
Water temperature – DHW mode: 30~60°C
Outdoor temperature range – heating mode: -25~35°C
Outdoor temperature range – cooling mode: -5~43°C
Outdoor temperature range – DHW mode: -25~43°C
MCS Certificates number:

- KHA-06RY1-B+KMK-60RY1 No: MCS HP0270/02

- KHA-08RY1-B+KMK-100RY3 No: MCS HP0270/09

- KHA-10RY1-B+KMK-100RY3 No: MCS HP0270/10

- KHA-12RY3-B+KMK-160RY3 No: MCS HP0270/20

- KHA-14RY3-B+KMK-160RY3 No: MCS HP0270/21

- KHA-16RY3-B+KMK-160RY3 No: MCS HP0270/22
